QUALITY. FAIR PRICE. FACTORY DIRECT
Modern Radiant Floor Heating Panels
Your one stop source for radiant heating panels
Trusted Brands for different radiant heat applications
Over Raised Floor Subfloor
Over Concrete Slab
Radiant Panel Solutions For Every Project
Our modern radiant panel underlayment designs provide low mass, lightweight, low profile, efficient and very fast responding radiant panels ready for insertion of Pex tubing, and all are finished flooring goods friendly.
Why Choose Us?
- Multiple Solutions: Over raised subfloor, Over Concrete slab, Under Concrete slab
- Superior Comfort: Enhance living spaces with even, efficient heating
- Energy Efficiency: Reduce costs and increase sustainability
- Friendly Project Support: Design and layout services
- Cost effective: Factory direct pricing
We Offer Two Options to Meet Different Needs
| Ecowarm RadiantBoard | Ecowarm RadiantBoard EPS | Ecowarm RadiantBoard EPS | |
|---|---|---|---|
|
 |
|
|
 |
 |
 |
|

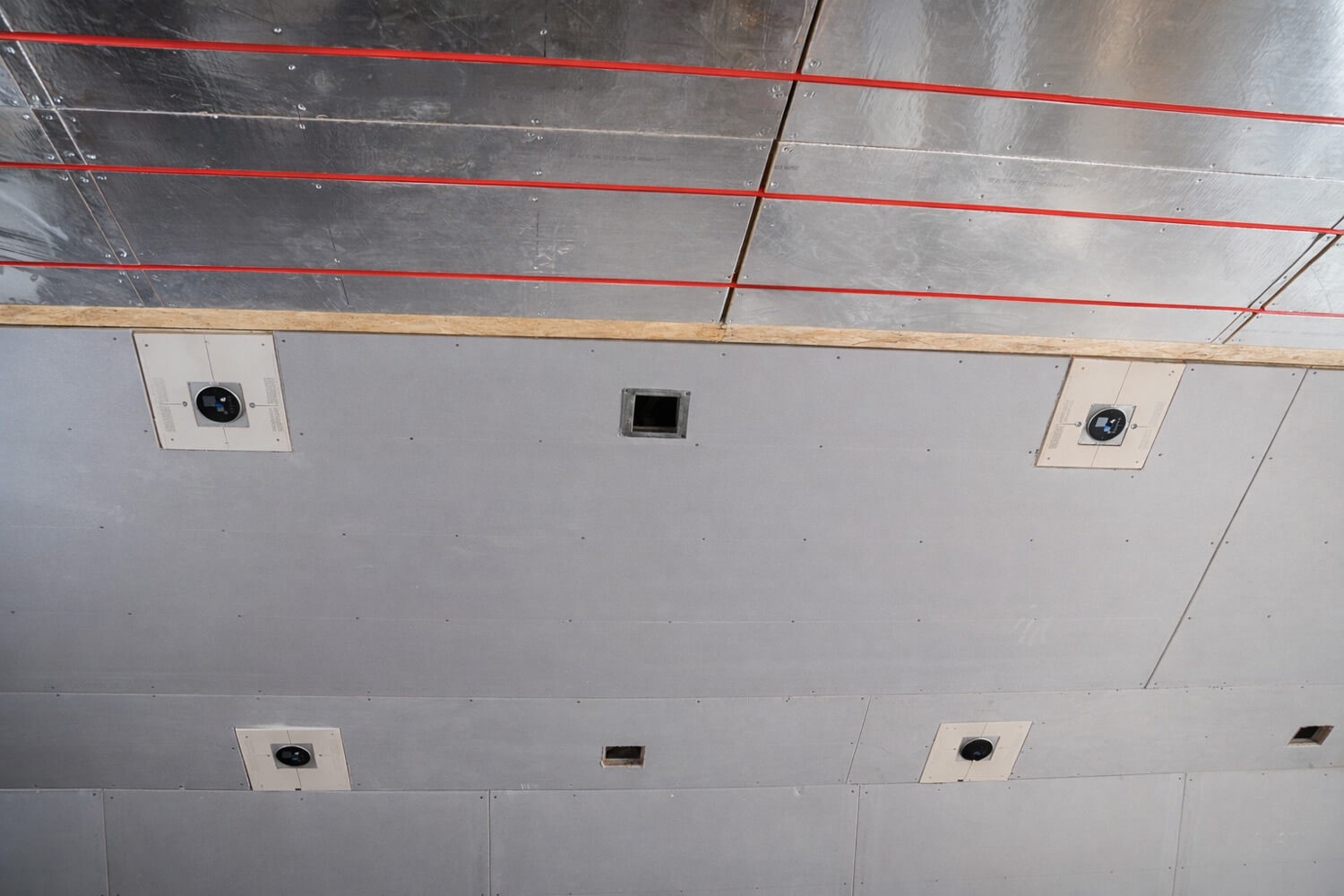

| Application | Over Subfloor | Over Subfloor, Concrete Walls, and Ceilings | Over Subfloor, Concrete Walls, and Ceilings |
| Cost | Premium | Premium | Premium |
| Thickness | 3/4″ | 1.125″ | 1.75″ |
| Performance | Excellent | Excellent | Excellent |
| R-Value | R – 1.0 | R – 2.7 | R – 5.6 |
| Substrate | Premium Ply | Premium Ply + EPS Foam | Premium Ply + EPS Foam |
| PEX Size | 1/2″ | 1/2″ | 1/2″ |
| PEX Spacing | 11.75″ OC | 11.75″ OC | 11.75″ OC |
| Board Size | 23.5″ X 47″ | 23.5″ X 47″ | 23.5″ X 47″ |
Over Raised Floor
Recommend for luxury whole custom home projects

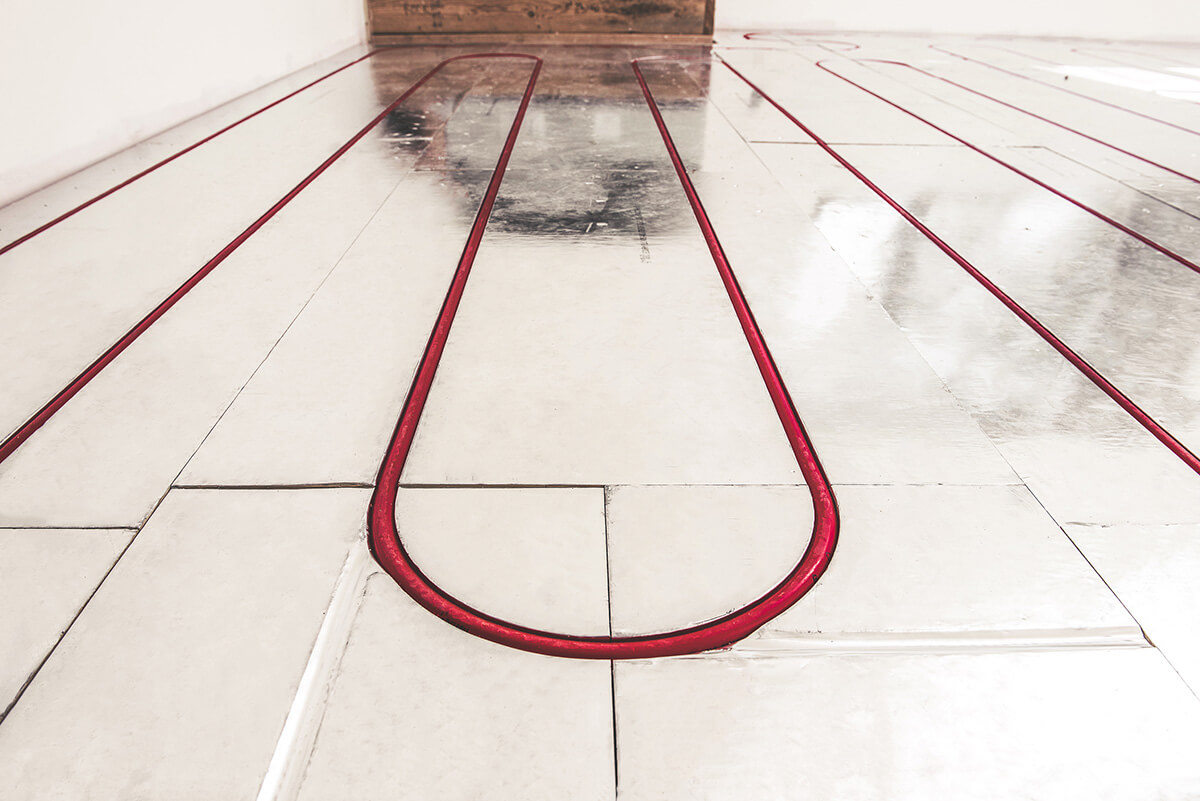

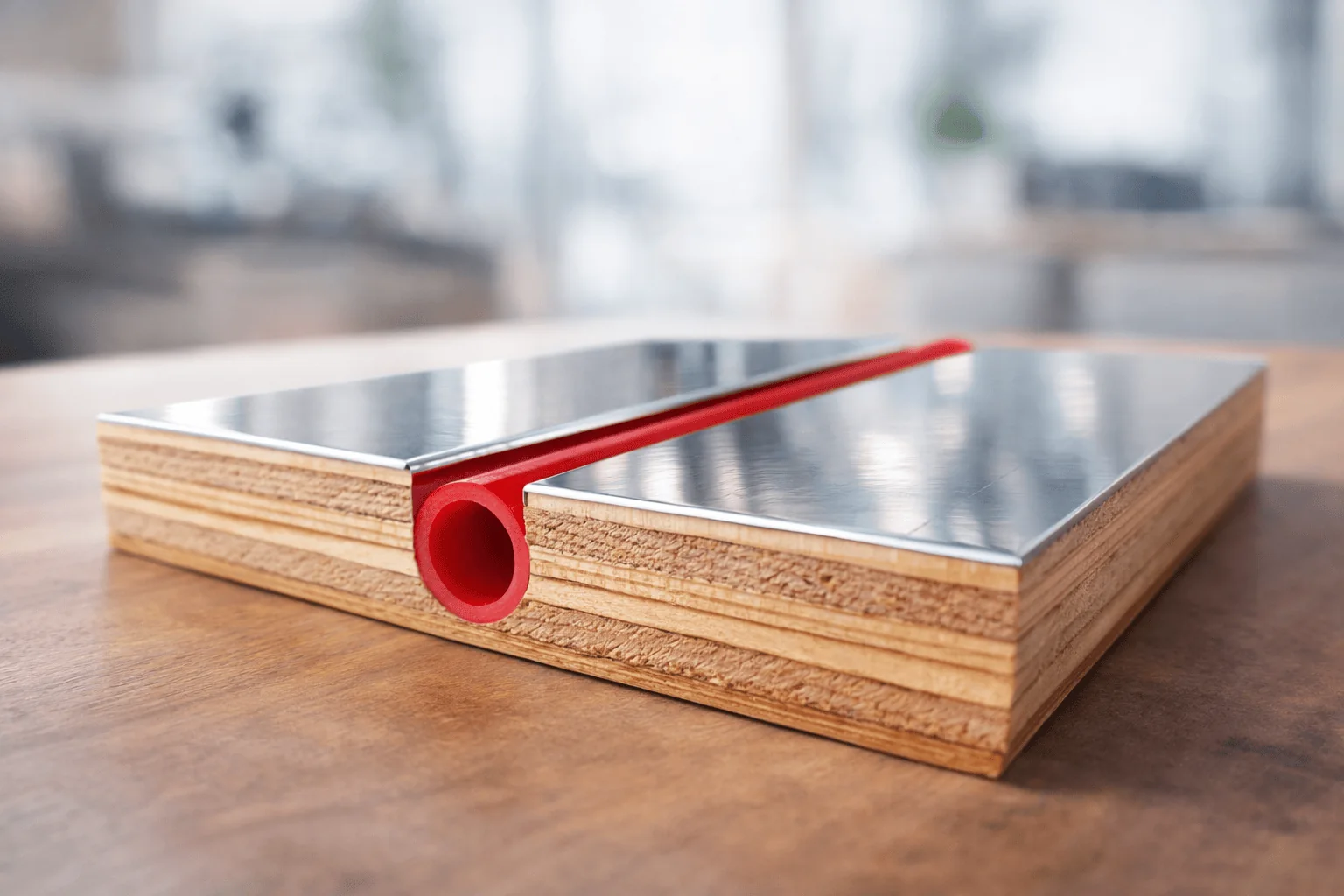

Elevate Your Projects with Premium Ecowarm RadiantBoard
For architects and builders aiming to deliver the pinnacle of luxury and comfort, Ecowarm RadiantBoard is the ultimate choice.
This premium product is designed for high-end projects, offering unmatched thermodynamic performance and energy efficiency. Its superior aluminum layer ensures optimal heat distribution, making it ideal for modern luxury buildings. Choose Ecowarm RadiantBoard for a green, high-quality solution that meets the demands of your most discerning clients.
-
NEW PREMIUM OSB SUBSTRATE
From the makers of Advantech
OVER CONCRETE SLAB
Low Profile dry Over Concrete Solution
Over existing concrete, basements and garages

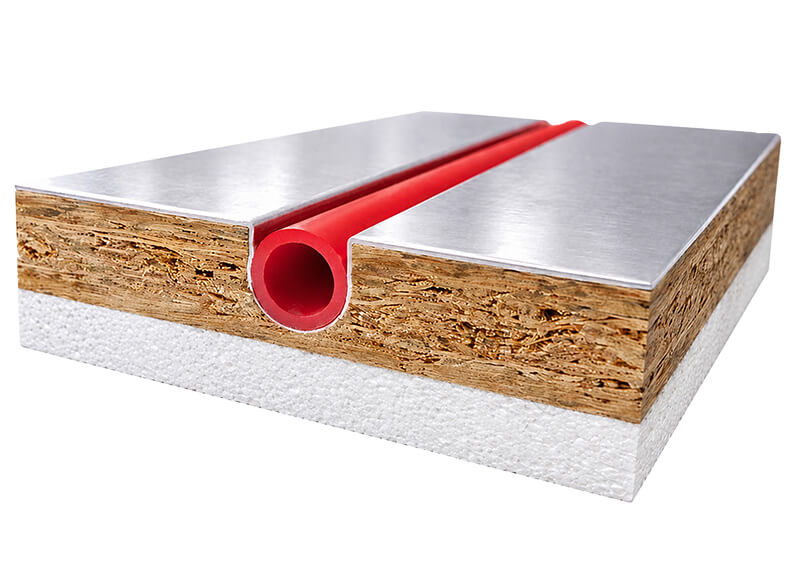

Since 2000, we’ve been delivering top-notch radiant heating solutions, and now we’ve taken it a step further. Ecowarm RadiantBoard EPS combines the trusted quality of our patented panels with the advanced benefits of EPS foam insulation. Enjoy superior insulating performance, sound dampening, high compression strength, and water-resistant durability. Whether you’re installing over a slab or a raised floor, our easy-to-assemble system ensures a flawless fit every time.
| Ecowarm RadiantBoard | Ecowarm RadiantBoard EPS | Ecowarm RadiantBoard EPS | |
|---|---|---|---|
|
|
|
|
|
|
|
|
| Application | Over Subfloor | Over Subfloor, Concrete Walls, and Ceilings | Over Subfloor, Concrete Walls, and Ceilings |
| Cost | Premium | Premium | Premium |
| Thickness | 3/4″ | 1.125″ | 1.75″ |
| Performance | Excellent | Excellent | Excellent |
| R-Value | R – 1.0 | R – 2.7 | R – 5.6 |
| Substrate | Premium Ply | Premium Ply + EPS Foam | Premium Ply + EPS Foam |
| PEX Size | 1/2″ | 1/2″ | 1/2″ |
| PEX Spacing | 11.75″ OC | 11.75″ OC | 11.75″ OC |
| Board Size | 23.5″ X 47″ | 23.5″ X 47″ | 23.5″ X 47″ |
| ThermalBoard | ThermalBoard EPS | ThermalBoard EPS | |
|---|---|---|---|
 |
 |
|
|
 |
 |
 |
|
| Application | Over Subfloor | Over Subfloor, Concrete Walls, and Ceilings | Over Subfloor, Concrete Walls, and Ceilings |
| Cost | Economical | Economical | Economical |
| Thickness | 5/8" | 1" | 1-5/8" |
| Performance | Good | Good | Good |
| R-Value | R – .5 | R – 2.3 | R – 5.2 |
| Substrate | High Density MDF 92% Recycled | High Density MDF 92% Recycled + EPS Foam | High Density MDF 92% Recycled + EPS Foam |
| PEX Size | 3/8″ | 3/8″ | 3/8″ |
| PEX Spacing | 8″ OC | 8″ OC | 8″ OC |
| Board Size | 16″ X 48″ | 16″ X 48″ | 16″ X 48″ |
OVER RAISED FLOOR
Recommended for remodelling & budget sensitive projects

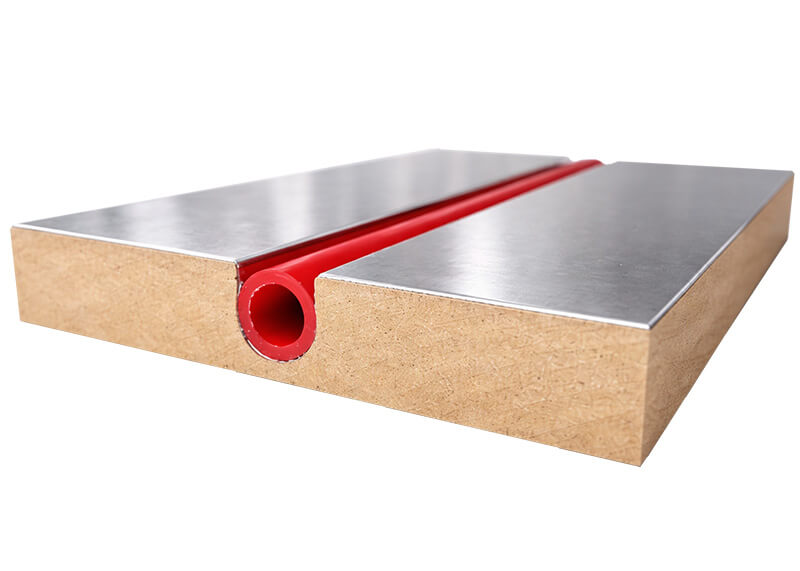

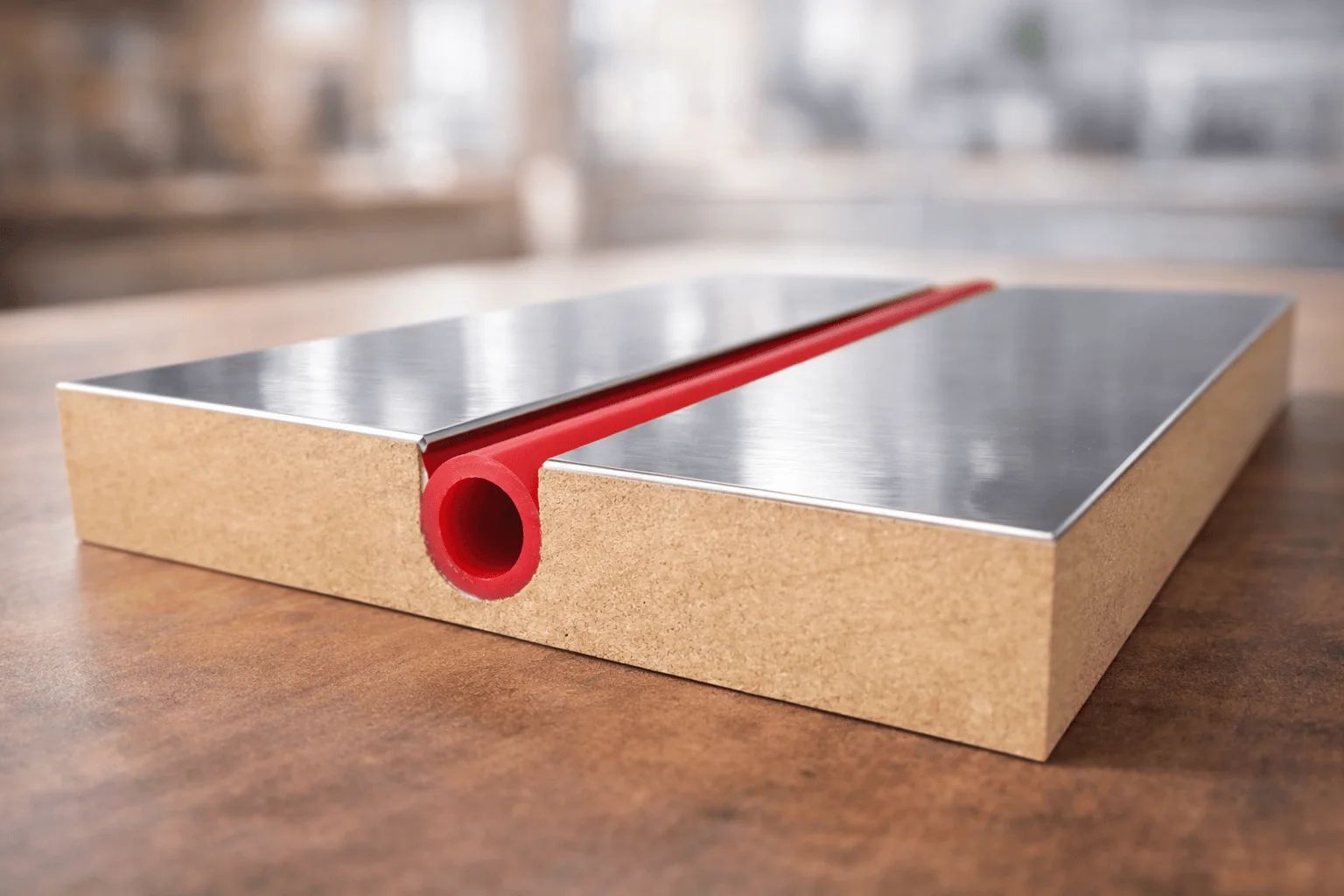

Cost-Effective Heating Solutions with Thermalboard
When budget is a priority, Thermalboard Radiant Floor Heating offers a great balance of performance and affordability. Ideal for various projects, this cost-efficient product ensures reliable heating without sacrificing quality.
Thermalboard’s design simplifies installation, making it a practical choice for contractors and builders focused on delivering comfort and efficiency within budget.
92% pre-consumer recycled content and meets LEED® v4 Criteria, with zero formaldehyde and no-VOCs.

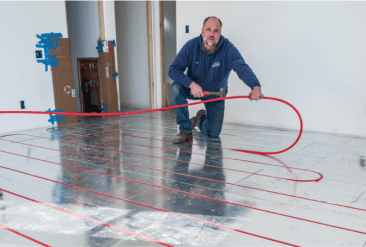

Over CONCRETE SLAB
Low Profile dry Over Concrete Solution
Over existing concrete, basements and garages

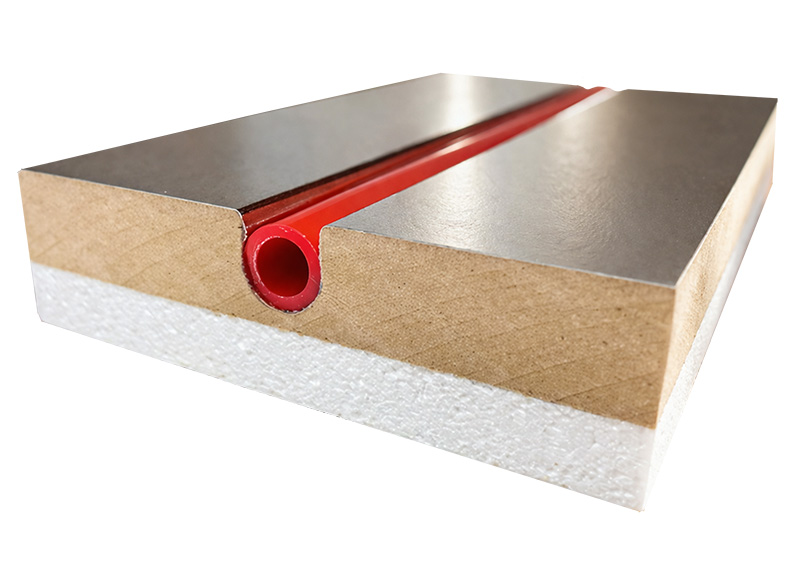

Our improved Thermalboard™ offers enhanced performance, sustainability, and moisture resistance with no added formaldehyde. For added flexibility, Thermalboard EPS™ comes with durable EPS foam in various thicknesses, perfect for both subfloor and concrete installations. Whether glued, screwed, or anchored, our panels deliver superior radiant comfort in any climate.
| ThermalBoard | ThermalBoard EPS | ThermalBoard EPS | |
|---|---|---|---|
|
|
|
|
|
|
|
|
| Application | Over Subfloor | Over Subfloor, Concrete Walls, and Ceilings | Over Subfloor, Concrete Walls, and Ceilings |
| Cost | Economical | Economical | Economical |
| Thickness | 5/8" | 1" | 1-5/8" |
| Performance | Good | Good | Good |
| R-Value | R – .5 | R – 2.3 | R – 5.2 |
| Substrate | High Density MDF 92% Recycled | High Density MDF 92% Recycled + EPS Foam | High Density MDF 92% Recycled + EPS Foam |
| PEX Size | 3/8″ | 3/8″ | 3/8″ |
| PEX Spacing | 8″ OC | 8″ OC | 8″ OC |
| Board Size | 16″ X 48″ | 16″ X 48″ | 16″ X 48″ |
Under Concrete Slab
Cut Installation Costs and Get It Right
Under Concrete Slab Insulated Radiant Panels
Any concrete slab that will incorporate radiant heating must include underslab and edge slab insulation or suffer significant energy and performance deficits.
InsulHeat UNDERSLAB Radiant Floor Heating 2″x4″ Panels combine rigid insulation, a vapor barrier and a PEX tubing locking mechanism into a single solution that significantly reduces installation time.
Cost effective compared to the old blue board installation method. Ships directly to your job site factory direct. Get free quote including freight. Fast ship.
Let Us Help You Select The Right WBI Radiant Panels
For Your Project
We are here to help you select the right panels for your radiant heat application. Give us a call.
Have Questions? Contact Us Today
Call Us Now: 877-924-3899
8AM-5PM Central Time

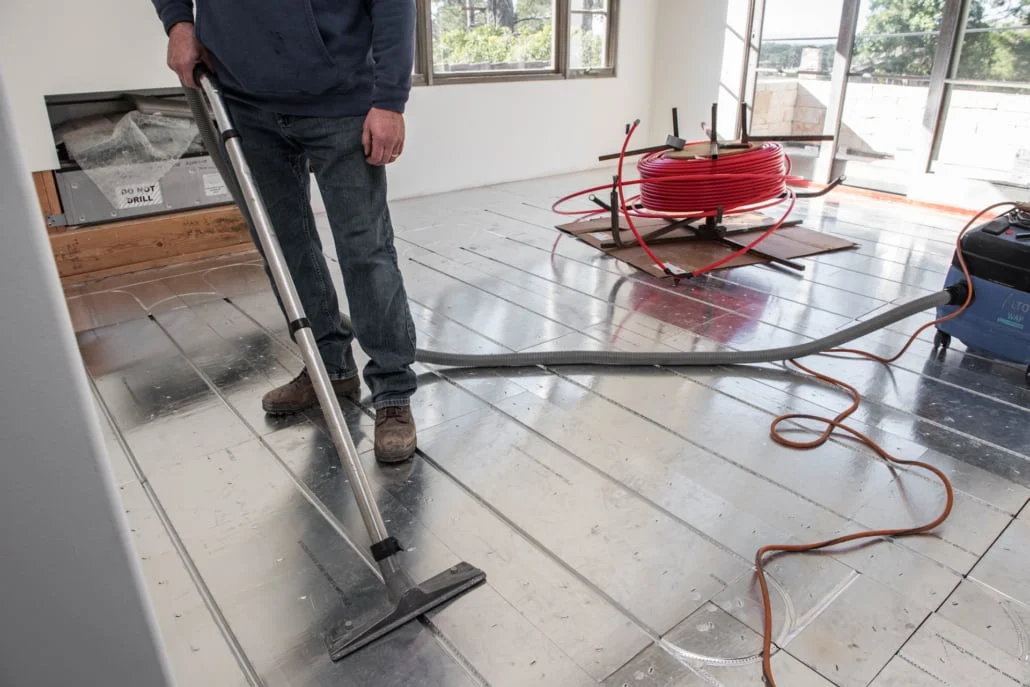

The Installation Process
Our light weight, low mass radiant heat panels are easily installed near the completion of the project by following the detailed project plans. Panels are cut and placed on the floor in the proscribed pattern, secured to the subfloor or concrete and radiant tubing is installed, followed by the finished flooring goods. Watch our video and our detailed installation manual.

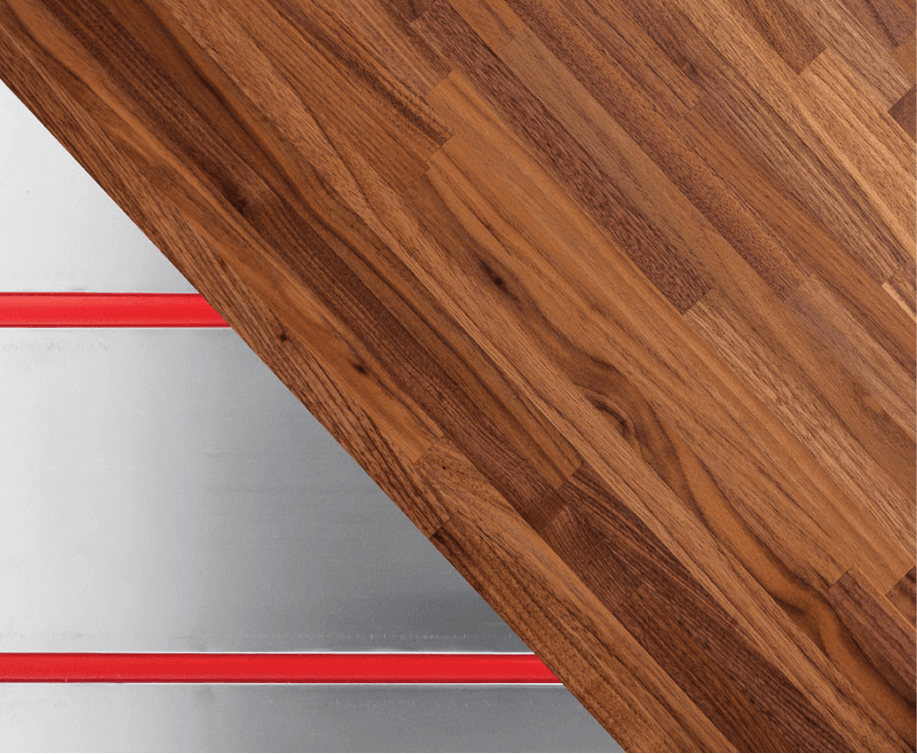

Radiant Panels Compatible With Most Flooring Goods
We provide detailed instructions & graphics for installation over most floor coverings. WBI works with most flooring goods including:
- Carpet
- Tile
- Stone
- Hardwood
- Laminate
- Vinyl
- + More
EPS Panel Over Concrete
EPS Panel Over Plywood
Custom Design & Layout
Radiant Panel Layout & Design Services for Your Projects
Each project receives a board layout for accuracy and ease of installation. We also offer optionally complete mechanical design services.
Maximize Comfort & Efficiency With Our Solutions
Radiant Heat Panel Response Time
Faster response time resolves control issues with faster response to both heating and cooling down the system in the face of solar gain and rapidly dropping temperatures, all resulting in better comfort control.
Efficient. Requires Low Water Temperatures.
While energy efficiency may not be a feature of sustainability, it is a desirable feature for green homes. WBI aluminum laminated low mass systems are highly efficient methods for delivering hydronic heat – making our product part of broad-based carbon reduction strategies and an excellent technical partner with geothermal and air-to-water heat pumps in achieving Net Zero Energy building solutions.
WBI PANELS COMPATIBLE WITH HYDRONIC HEAT PUMPS
Great Match With Hydronic Heat Pumps
Learn why low mass, fast response radiant heat transfer panels are the best match for air-to-water and geothermal water-to-water heat pumps. Achieve your net zero energy goals with WBI Panels.
Learn More
10.5K
Systems Supplied
24+
Years Established
4.5M
Sq. Ft. Sold

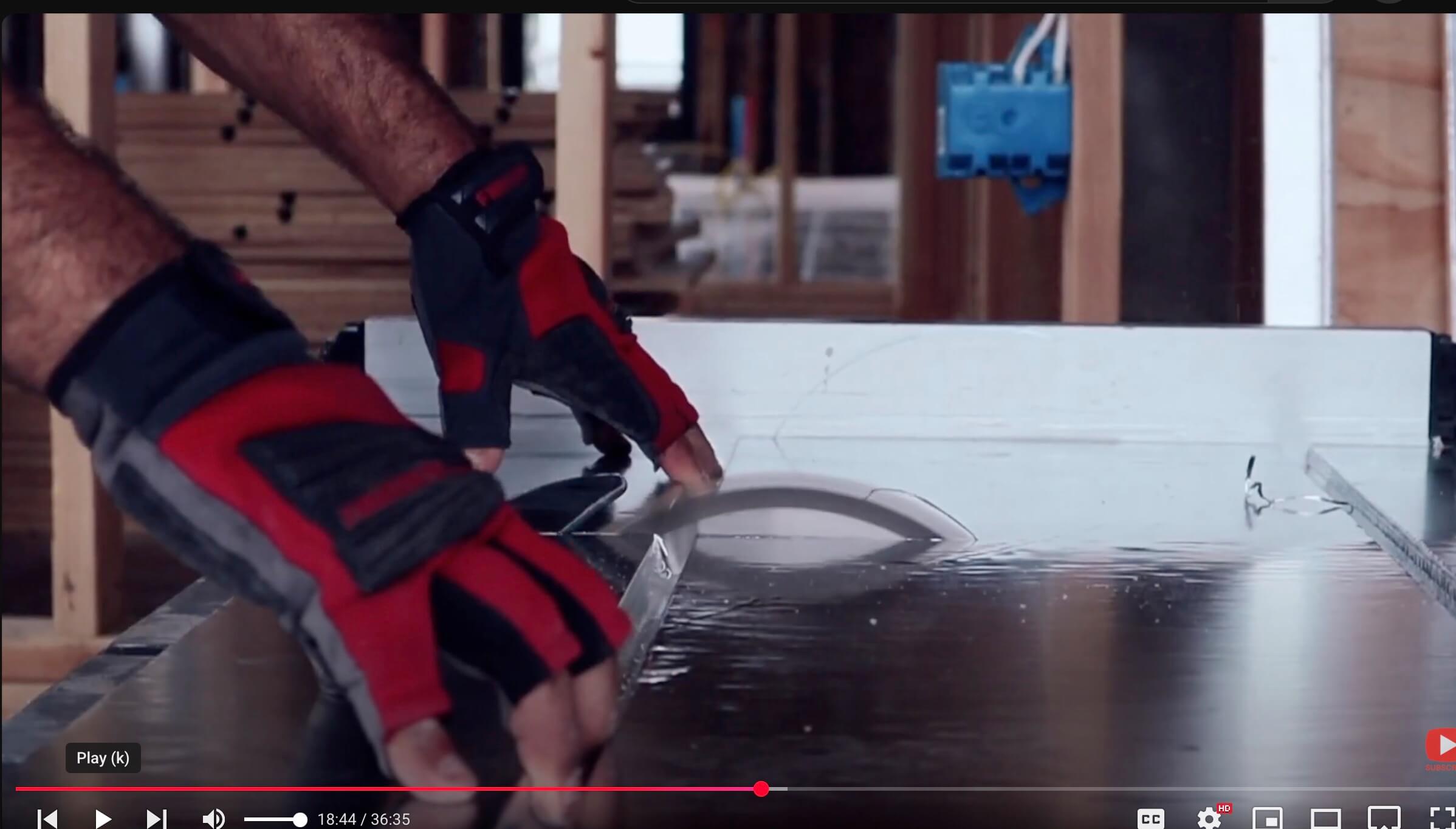

Watch A Fast, Fun Tour Of Radiantboard Installation With Anthony Of The Build.tv
Anthony Carrino, nine-season HGTV favorite and host of The Build Up, walks through the installation of Ecowarm radiant heating boards in his latest project.
Read Full Firehouse Case Study
The Professional’s Choice For Radiant Heat Panels And Floor Heating
Request Factory Samples
We offer free samples to professionals specifying and installing radiant systems so you and your clients can see can see the exceptional craftsmanship of our products.
Discover Essential Resources For Your Projects

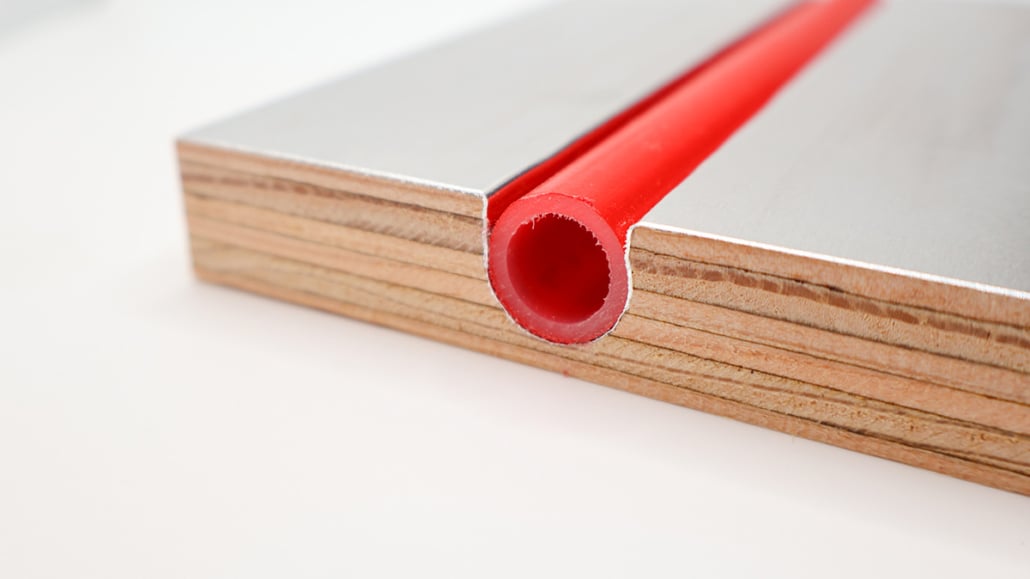

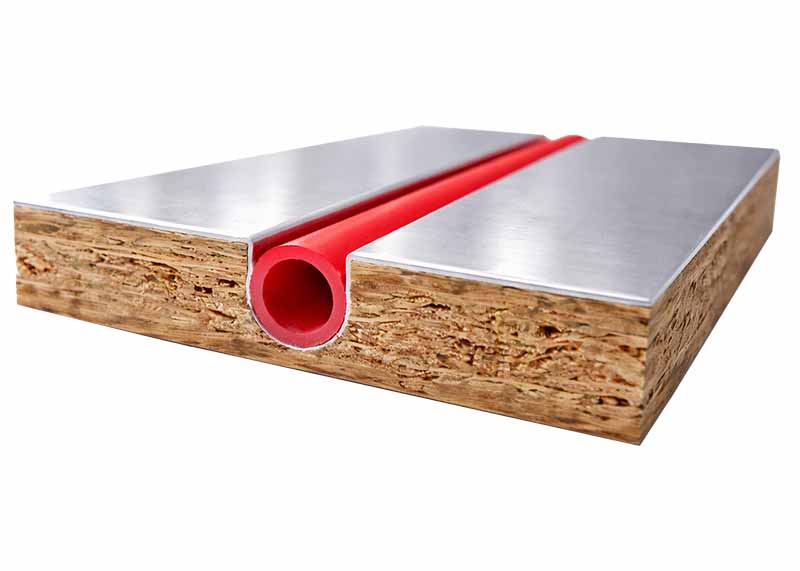

Ecowarm RadiantBoard is constructed using top-grade premium plywood and premium OSB from the makers of Advantech.
Thermalboard is a low-profile, sustainable product with 92% pre-consumer recycled content, meeting LEED® v4 criteria. It features a thinner aluminum laminate and 8” spaced radiant tubing, with zero formaldehyde and no VOCs, making it ideal for green building projects.
InsulHeat UNDERSLAB Radiant Floor Heating 2’x4’ Panels combine rigid insulation, a vapor barrier and a PEX tubing locking mechanism into a single solution that significantly reduces installation time.
Radiant Floor Heating In Custom Homes
With passion and expertise, our guests discuss how hydronic radiant floor systems can influence a project’s score on the Active House Radar, providing valuable insights into the benefits of this innovative technology.
Whether you’re an architect, builder, or simply interested in cutting-edge sustainable solutions, this episode is a must-listen.
WBI Radiant Panel Manufacturer and mechanical engineering firm Monterey Energy Group discuss modern radiant floor heating.
Work With Us
Learn how our cutting-edge radiant floor heating solutions can enhance your projects, increase client satisfaction, and boost your reputation as a premium home builder.
