Heated Driveway Installation: What You Need to Know Before You Start
Snow and ice buildup on driveways is more than just a winter inconvenience—it’s a safety hazard, a liability, and a time-consuming chore. Whether you’re tired of constant shoveling or simply want a safer, maintenance-free surface, a heated driveway is an investment that offers comfort, safety, and long-term value.
In this guide, we’ll walk through the different types of heated driveway installation systems, how they work, their pros and cons, and what to expect from the installation process. If you’re considering one for your home or business, this will give you a solid foundation before making a decision.
What Is a Heated Driveway?
A heated driveway is an outdoor surface equipped with a snow-melting system that automatically clears ice and snow using heat generated beneath the surface. These systems come in two main types:
1. Electric Snow-Melt Systems
- Use cables or heating mats embedded in the driveway
- Connected to a power source and controlled by a thermostat or snow sensor
- Best for smaller areas due to high operating costs
2. Hydronic Snow-Melt Systems
- Use a series of tubes (typically PEX) that circulate warm water
- Powered by a boiler, water heater, or heat pump
- More complex to install, but much more cost-efficient over time—especially in large areas
Hydronic systems are ideal for full-size driveways, walkways, and commercial applications, while electric systems are better suited for short runs, steps, or tight spaces.
Key Benefits of Heated Driveways
1. No More Shoveling
Skip the early mornings and back pain. Heated driveways activate automatically during snowfall, keeping the surface clear without manual labor.
2. Improved Safety
Melting snow and ice at the source reduces slips and falls, which is especially important for households with children, seniors, or frequent visitors.
3. Cleaner Interiors
No more tracking snow, salt, or sand into the house or garage.
4. Increased Property Value
A radiant driveway adds premium appeal to high-end homes, especially in snowy regions.
5. Long-Term Savings
While the upfront cost is higher, a heated driveway reduces the need for snow-removal services, deicing chemicals, and repairs caused by freeze-thaw cycles.
Things to Consider Before Installing a Heated Driveway
Installing a snow-melt system isn’t just about laying tubing under your driveway. Proper planning is essential. Here are the top factors to keep in mind:
Driveway Surface Material
Radiant systems can be installed under:
- Concrete
- Asphalt
- Pavers
Each has different installation requirements. Concrete is the most compatible, as tubing or cables can be embedded directly into the pour.
Energy Source
Hydronic systems require a dedicated heat source. Common options include:
- Gas or electric boilers
- Water heaters
- Ground-source or air-source heat pumps
Make sure your mechanical system can handle the additional load.
Insulation Is Essential
Without insulation below the radiant tubing, a significant portion of heat will escape downward into the soil instead of rising to the surface.
Rigid foam insulation panels are commonly used to reduce this heat loss. A properly insulated system heats up faster and operates more efficiently.
Step-by-Step Heated Driveway Installation Overview
The exact process will vary based on your surface type and system, but most hydronic heated driveway installations follow these general steps:

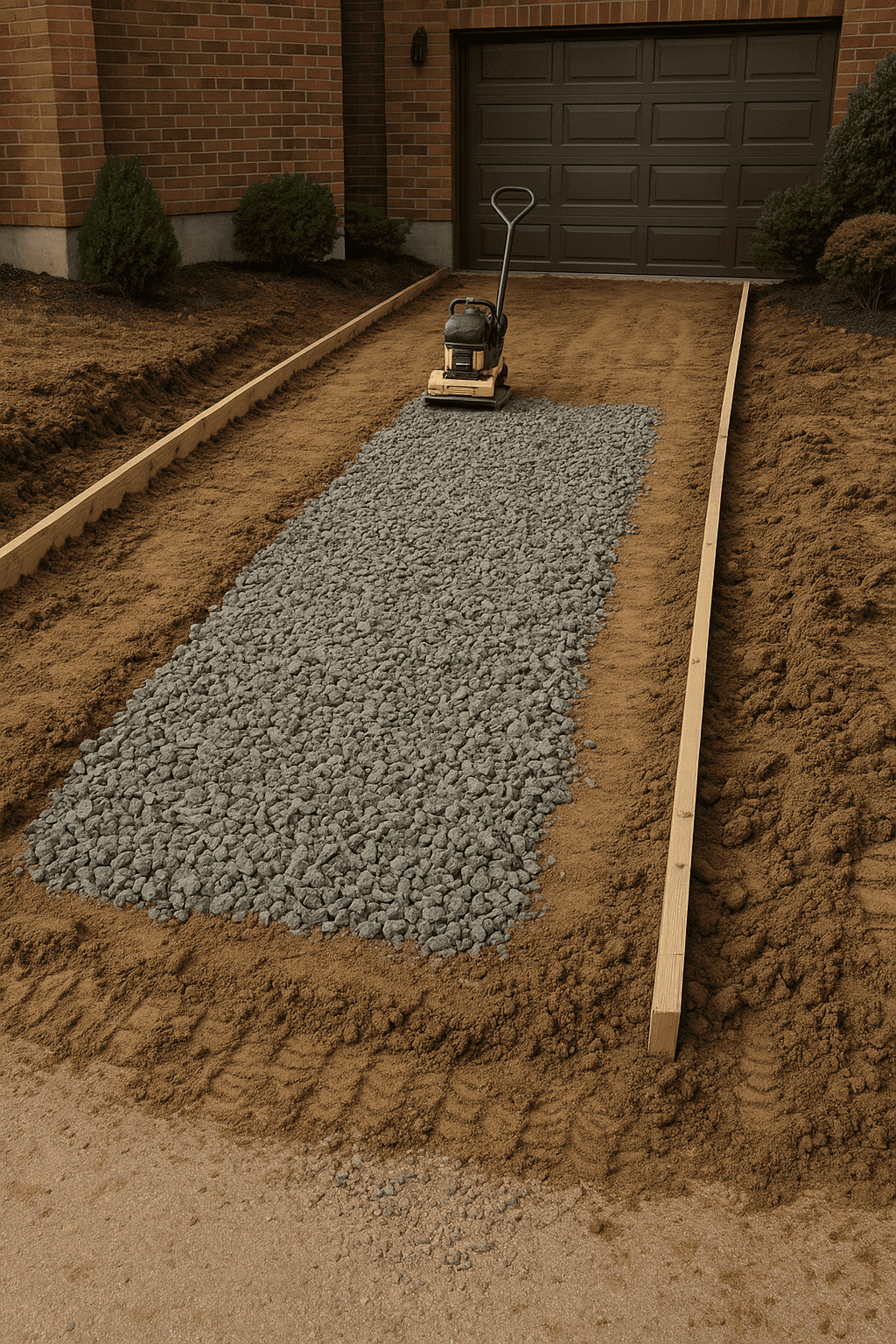

1. Excavation and Site Prep
- Remove the existing driveway surface
- Excavate to the required depth for gravel, insulation, tubing, and slab
- Install and compact a gravel base for drainage and stability

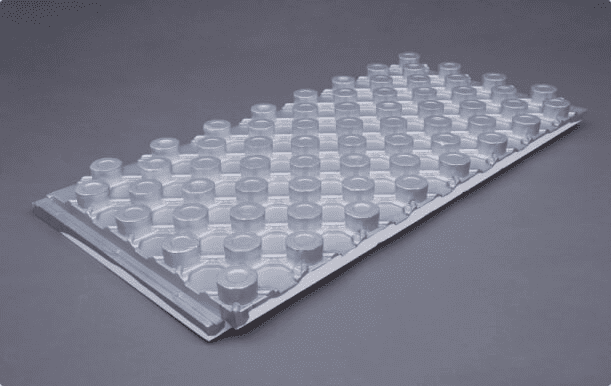

2. Install Insulation Panels
A rigid foam insulation layer is placed over the compacted base to prevent downward heat loss.
Note: Products like InsulHeat™ by Warm Brothers Inc. are pre-grooved EPS panels that also hold radiant tubing in place—speeding up installation and improving efficiency.
3. Lay Tubing or Cables
- Hydronic: Run PEX tubing in loops across the surface
- Electric: Install heating mats or cables as per layout
The tubing is typically attached to rebar or mesh, or placed within pre-cut grooves in insulation panels.
4. Pour Concrete or Lay Pavers
- For concrete: Pour directly over tubing, ensuring proper depth and coverage
- For pavers: Use a sand or mortar bed, depending on design
Expansion joints and control cuts should be carefully planned to avoid damaging the radiant system.
5. Connect to Heat Source and Controls
The final step involves connecting the system to a manifold, control sensors, and the heat source. A snow sensor typically automates the system based on temperature and moisture detection.
Average Costs
Heated driveway costs depend on the surface area, system type, and materials used. Here’s a rough breakdown:
| Item | Cost Range (per sq ft) |
| Electric System (installed) | $12 – $20 |
| Hydronic System (installed) | $14 – $25 |
| Insulation Panels | $1.50 – $3.00 |
| Heat Source (boiler, pump) | $2,000 – $6,000+ |
While the upfront investment may be significant, especially for larger driveways, operating costs for hydronic systems remain relatively low—especially when integrated with high-efficiency boilers or renewable energy sources.
Maintenance and Longevity
Properly installed heated driveway systems require minimal maintenance. Here’s what to expect:
- Annual inspection of the manifold, sensors, and mechanical system
- Pressure testing of hydronic loops if issues arise
- Snow sensor calibration to ensure efficient operation
With good design and quality components, hydronic systems can last 30+ years, and insulation materials like EPS panels can last the lifetime of the driveway.
Environmentally Smart, Too
Heated driveways don’t have to be wasteful. In fact, they can be more sustainable than traditional methods:
- No salt or chemical runoff into storm drains
- No gasoline-powered snow blowers
- Systems can be paired with solar thermal or geothermal for even greater efficiency
Using proper insulation—like EPS panels—is key to minimizing energy waste.
Final Thoughts: Is a Heated Driveway Right for You?
If you live in a cold, snowy climate and want to eliminate manual snow removal, improve safety, and boost curb appeal, a heated driveway is a wise investment. With the right materials and design, these systems provide long-term comfort and energy savings.
Just be sure to:
- Choose the right type of system for your needs
- Insist on high-quality insulation to reduce operating costs
- Work with experienced installers who understand radiant design
One Smart Option: InsulHeat™ Panels
For those exploring hydronic radiant systems, InsulHeat™ by Warm Brothers Inc. is a high-performance EPS insulation panel designed for driveway and outdoor radiant applications. It features:
- Built-in grooves for PEX tubing
- Load-bearing EPS construction
- Simplified layout and installation
It’s a smart choice when paired with any hydronic system where insulation and tubing layout efficiency matter.
Learn More
To learn more about snow-melt design, radiant installation, or to explore engineered products like InsulHeat™, visit wbiwarm.com.
