Understanding Commercial Radiant Floor Heating and Its Efficiency

TL;DR (Featured Snippet-style)

Commercial radiant floor heating uses warm water (hydronic) in PEX tubing embedded in or above the floor to turn the slab into a giant, low-temperature heat emitter. It delivers even comfort, low fan energy, and reduced stratification—ideal for warehouses, retail, offices, worship spaces, schools, and healthcare. Pairing radiant with heat pumps and good insulation can lower operating costs and improve indoor air quality vs. all-air systems.

What Is Commercial Radiant Floor Heating?

It’s a hydronic system that circulates warm water through PEX loops in the slab or in above-floor radiant panels. The floor surface gently warms (typically capped in the mid-80s °F for occupied areas), radiating heat to people and objects. Because heat starts where occupants are, spaces often feel comfortable at lower thermostat setpoints than forced air.

How It Works (Step-by-Step)

Heat Source (air-to-water heat pump or boiler) provides low-temperature water (often <120°F).
Manifolds & Pumps distribute flow to zones; controls modulate supply temps (outdoor reset), flow, and schedules.
PEX Loops (common spacing 6″–12″ O.C., loop lengths sized to head loss) warm the floor surface.
The floor radiates + mildly convects, eliminating hot/cold spots and reducing stratification in tall spaces.

Where Radiant Shines in Commercial Buildings

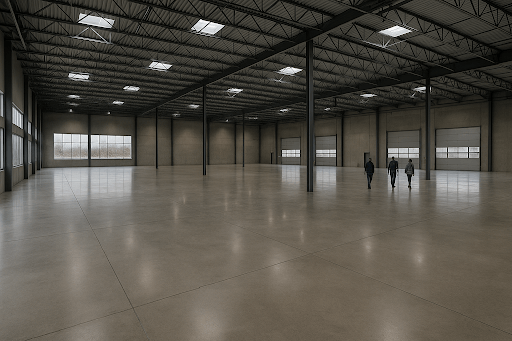

High-bay spaces: Warehouses, aircraft hangars, distribution centers—less heat wasted to the ceiling.
Retail & showrooms: Quiet, draft-free comfort keeps customers in the store longer.
Offices & schools: Even temperatures reduce complaints and permit lower supply temps.
Worship halls & assembly spaces: Comfortable seating zones without noisy ducts.
Healthcare & labs: Lower air velocities can help minimize drafts and airborne dust.
Retrofits on cold slabs: Above-floor EPS-backed systems help reduce downward heat loss where the existing slab lacks insulation.

Insulation below or behind the heated layer does not stop heat loss entirely; it reduces it significantly, boosting usable output into the room.

Hydronic vs. Electric in Commercial

Hydronic (water-based): Standard for primary heating—scalable, efficient at low temps, integrates with heat pumps/boilers, BAS-friendly.
Electric cable/mat: Niche for small zones or spot warming; operating cost is tied to electricity rates and is rarely used as whole-building heat.

System Types

1) In-Slab (High Thermal Mass)

Best for: New builds, slabs-on-grade, large open areas.
Pros: Superb temperature uniformity; works well with constant setpoints, off-peak strategies, and heat pumps.
Considerations: Slower warm-up; design for steady operation and smart preheat.

2) Over-Floor Panels (Fast Response)

Best for: Retrofits, multi-story floors with wood or topping slabs.
Pros: Faster response; minimal floor buildup; easy zoning.
Considerations: On concrete, EPS-backed panels help reduce downward loss; verify allowable floor finishes.

Efficiency & IEQ Advantages

Low-temp operation: Heat pumps achieve higher COP; condensing boilers stay in condense mode longer.
Lower fan energy: Ventilation can be right-sized (e.g., DOAS) instead of carrying full heating loads with air.
Less stratification: Better comfort in tall volumes, fewer “hot heads, cold feet” complaints.
Quiet & clean: Minimal air movement reduces drafts and dust recirculation.

Controls & BAS Integration

Outdoor reset: Matches water temp to weather, maximizing efficiency.
Zoning strategies: Group by use/solar gains; balance loops and use pressure-independent control valves where helpful.
Preheat & scheduling: Predictive warm-up for in-slab systems; avoid aggressive night setbacks that lengthen recovery.
BAS protocols: BACnet/Modbus integration for setpoints, trends, alarms, and energy dashboards.
Dew-point protection: In humid applications (atriums, pools), use floor or space dew-point limits to prevent condensation.

Design Snapshot (Engineer’s Checklist)

Loads: Room-by-room heat-loss with envelope, ventilation, infiltration.
Water Temps: Target the lowest that meets design—often 90–120°F.
Spacing & Loops: 6″–12″ O.C.; loop lengths sized to pump head (keep within manufacturer limits).
Manifolds: Accessible locations with balancing, isolation, and purge points.
Pumps: ECM variable-speed with ΔP control for part-load efficiency.
Insulation: Under-slab/perimeter and thermal breaks at edges; for retrofits, EPS-backed panels to reduce downward loss.
Floor Finishes: Polished/epoxy concrete, tile, LVT, resilient; check R-values and adhesive limits for radiant.
Safety/limits: Floor surface temp caps (mid-80s °F typical in occupied zones).
Commissioning: Pressure test, purge air, verify flows, sensor calibration, trend and tune.

Glycol in Commercial Hydronic Loops (Freeze Resilience)

For intermittently occupied buildings, zones near loading docks/exterior doors, or any circuits subject to cold exposure, use inhibited propylene glycol (hydronic-grade).

Concentration: Select via manufacturer charts for the site climate; higher mix = more protection but increased viscosity and slightly lower heat transfer.
Impacts: May require pump head adjustments, expansion tank sizing, and minor supply temp tweaks.
Maintenance: Annual checks for concentration, pH, and inhibitor reserve; top up with the same pre-mix.
Note: Glycol protects the hydronic circuit if heat is lost—it doesn’t replace safe whole-building setpoints.

Cost & ROI (What Owners Care About)

Capex: Radiant can be similar or slightly higher than unit heaters/RTUs, but often lower lifecycle cost when paired with heat pumps or condensing boilers.
Opex: Lower fan energy, low supply temps, and fewer comfort complaints reduce utility and service calls.
Resilience: Works well with staged/back-up sources and thermal storage strategies.

Applications & Details by Sector

Warehouses/Industrial: In-slab radiant plus DOAS ventilation; perimeter insulation is critical.
Retail/Grocery: Quiet, draft-free aisles; manage solar gains with zoned manifolds.
Offices/Education: Over-floor panels speed response in classrooms and meeting areas.
Worship/Assembly: Schedule-driven preheat; avoid deep setbacks between services.
Healthcare/Labs: Stable temps with low air movement; coordinate with strict ventilation standards.

Floor Covering Compatibility

Excellent: Polished/epoxy concrete, ceramic/porcelain tile, many LVT/LVP and resilient floors.
Caution: Thick carpets/pads (check R-value limits), wood products—use manufacturer temperature limits and radiant-compatible adhesives.

Common Pitfalls (and How to Avoid Them)

Under-insulated slab edges/perimeters → add thermal breaks and perimeter insulation.
Overlong loops / poor balancing → follow loop length limits and balance at the manifold.
Aggressive setbacks on high-mass slabs → use predictive preheat or smaller setbacks.
No dew-point limits in humid zones → add sensors and logic.
Unprotected cold-risk zones → specify glycol and isolation valves.

FAQs: Commercial Radiant Floor Heating

Q1: Can radiant be the primary heat in commercial buildings?
Yes. Hydronic radiant commonly serves as primary heat, with ventilation handled by a DOAS or existing air handler.

Q2: Does radiant work with heat pumps?
Absolutely. Low supply temps are ideal for air-to-water and water-to-water heat pumps.

Q3: How fast does an in-slab system warm up?
Slower than over-floor panels. Use predictive preheat to meet schedules without overshoot.

Q4: Do I need glycol?
Use inhibited propylene glycol where freeze risk exists (exposed piping, loading docks, intermittent occupancy). Interior zones without risk can be water only.

Q5: What about cooling?
Radiant heating is straightforward. Radiant cooling is possible in some commercial designs but needs careful dew-point control; most projects pair radiant heat with conventional or DOAS cooling.
